Mt Annan High School’s basketball court hosts more than just ball games. Here, weekly school assemblies take place, along with musical performances and other public events requiring sound reinforcement. But here’s the conundrum — the PA system is configured differently for each. Assemblies see students facing the width of the court, while performances feature the stage at the far end with the audience facing the court’s length. This effectively required two separate PA systems to accommodate both applications, but with central control.
The NAS Projects Team devised a solution to adequately cover the basketball court’s dual-oriented PA requirements. At the heart of the solution was the concept of running two ‘modes’ to discretely accommodate both assemblies and performances. Installation was carried out by Primo Electrical, with education supplier Kookaburra Educational Resources helming the project.
Six dBTechnologies Arena 15 loudspeakers hang on opposite walls, powered by three dual-channel InterM V2-5000 1000W amplifiers. The Ashly Protea ne24.24m 12 x 4 digital signal processor manages all six outputs to the Arena 15s, with carefully tuned DSP settings for both Assembly and Performance modes.

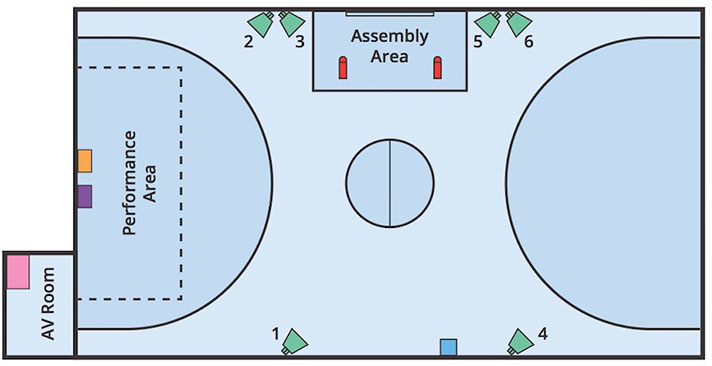

While Assembly mode engages Speakers 2, 3, 5, & 6 (see diagram), Performance mode uses 1, 3, 4 & 6 to throw sound down the length of the court. In terms of DSP, Performance mode boosts the lows and kicks up the highs for a more flattering and musical frequency response, whereas Assembly mode filters out a lot of the low end for a tighter response optimised for speech reproduction. Switching between the two modes is as painless as pushing a button on an Ashly WR-2 switch installed at the stage end, which recalls the respective DSP preset on the Ashly Protea ne24.24m processor.

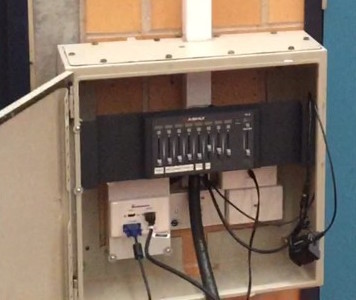

In Assembly Mode, an Ashly FR-8 mixer handles all inputs including three wireless microphones (Chiayo Performer mics with Audio-Technica capsules), projector audio, iPad input, and computer input. Performance mode puts a larger mixer in the circuit to cater for the connections at the stage end, with a 50m Maximum 16 x 4 multicore carrying the signal.

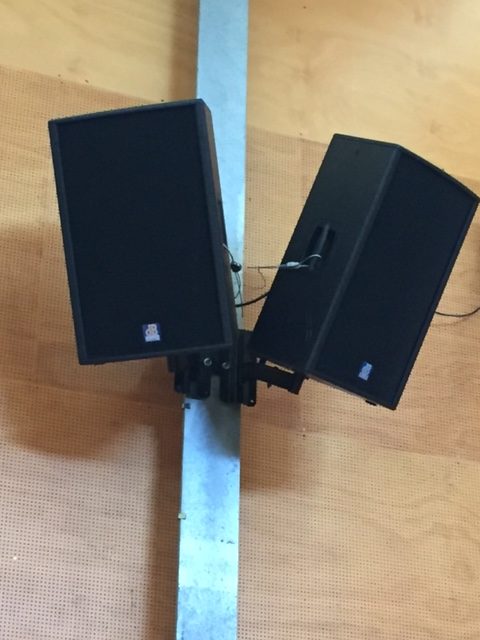

It was important to keep reverb under control, so the six dBTechnologies Arena 15s were mounted relatively low to steer sound waves away from the reverberant ceiling void. Ashly’s DSP prowess also came into play, with the speaker outputs tuned for the room to keep reverb-prone frequencies in check.
The ability to instantly repurpose the court’s PA system without moving speakers or re-running cables has benefitted the school greatly. Mark de Gruchy of Mt Annan High School says the upgrade definitively trumps the school’s previous system. “We did have speakers in there before but they weren’t very efficient. Now, being able to switch between Performance and Assembly modes is 100% better than what we had before — actually, 200% better! The speakers are pretty clear, and everyone involved in the project had a great work ethic. I was very impressed.”
Further information on the full range of NAS brands can be found here.
dBTechnologies Arena 15
Power: 400W RMS
Max. SPL: 129dB
Freq. Response: 80Hz – 19kHz
Directivity: 90° x 40°
Crossover Frequency: 2kHz
InterM V2-5000 (all specs at 8Ω)
Freq. Response: ±0.5dB (20Hz – 20kHz)
Input Sensitivity: 1.4V
Voltage Gain: 36dB
Signal/Noise Ratio: >106dB
Ashly Protea ne24.24m
Expandable up to 24 channels
24-bit A/D-D/A conversion
31 preset locations
Intuitive user interface
6 x dBTechnologies Arena 15 speakers
3 x InterM V2-5000 power amps
2 x Chiayo Performer radio mics
1 x Ashly Protea ne24.24 processor
1 x Ashly FR-8 fader remote
1 x Ashly WR-2 wall remote
