d&b audiotechnik CCL12 Loudspeaker NLT4F/M
Description
CCL12 Loudspeaker NLT4F/M
Mobile specific compact cardioid line array loudspeaker for small to medium-scale sound reinforcement.
Owing to the arrangement of the forward and sideward LF drivers in combination with their processing functions, directivity is maintained across the entire operating bandwidth.
The frequency response extends from 60 Hz to above 18 kHz.

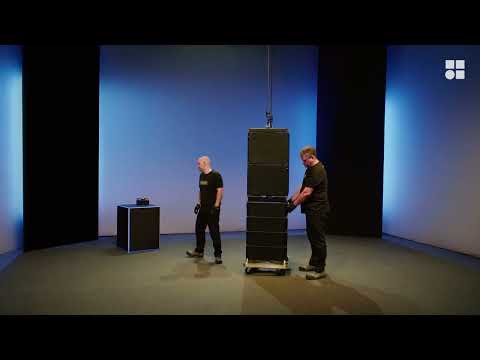

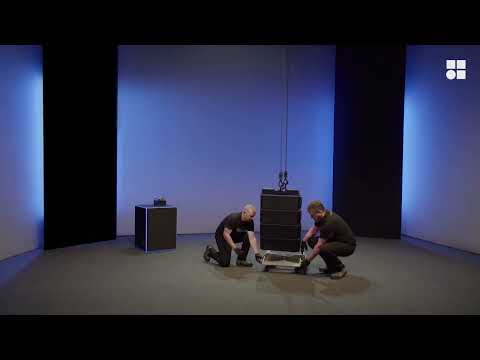

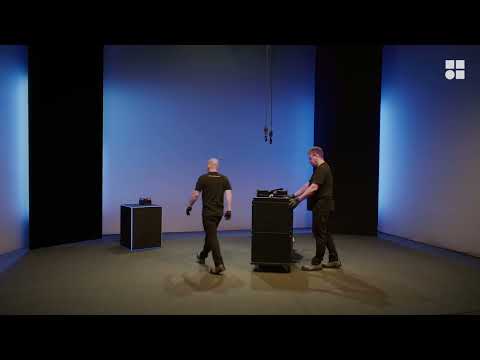

When the CCL Flying frame is used, up to 24 cabinets can be flown in vertical columns producing an 120° constant directivity dispersion pattern in the horizontal plane.
The cabinets are 2-way passive designs housing 2 x 7" neodymium forward LF drivers, 2 x 5" neodymium side firing LF drivers and two 1.75" exit HF compression drivers mounted to a dedicated wave shaping device. The cylindrical wave segments of each cabinet couple without gaps and sum up coherently. Splay angles between adjacent cabinets can be set in the range from 0° to 14° in 1° increments.
All components are arranged symmetrically around the centre axis of the cabinet to produce a perfect symmetrical dispersion pattern. This setup allows for a crossover design with a well-defined overlap of adjacent frequency bands resulting in a very consistent and accurate horizontal dispersion.
The cabinet enclosure is injection moulded (ABS Polycarbonate) and has an impact and weather protected 2K finish. The front and side panels of the cabinet incorporate a rigid metal grill backed by an acoustically transparent and water repellent fabric. Each side panel incorporates a handle while two additional handles are provided at the rear.
Features
- Components LF: 2 x 7" + 2 x 5"; HF: 2 x 1.75"
- Dispersion 120°
- SPLmax 140 dB
- Weight 17.6 kg / 38.8 lb
Specifications
System data- Max. sound pressure[1] with D40/D80/D90: 140
- Frequency response (-5 dB standard): 60 Hz - 18 kHz
- Frequency response (-5 dB CUT mode): 90 Hz - 18 kHz
- Frequency response (-10 dB standard, IEC60268): 55 Hz - 18 kHz
- Frequency response (-10 dB CUT mode, IEC60268): 80 Hz - 18 kHz
- Cabinets per D40/D80/D90 (ArrayProcessing): 4
- Cabinets per D40/D80/D90 (Line or Arc mode): 8
- Nominal impedance: 8 ohms
- Power handling capacity (RMS/peak 10 ms): 400/1200 W
- Nominal dispersion angle (horizontal): 120°
- Splay angle settings: 0 ... 14° (1° increment)
- Components:
2 x 7" front LF driver
2 x 5" side LF driver
2 x 1.75" HF compression driver
Passive crossover network - Connections: NLT4 F/M
- Dimensions (H x W x D): 8.23 x 23.35 x 14" / 209 x 593 x 355 mm
- Weight: 17.6 kg / 38,8 lb
Product Details
- RRP
- $ 17713.00
- Brand
- d&b audiotechnik
- Product Group
- CCL Series
- Product Category
- Loudspeakers - Line Array
