Soundtube 12' Subwoofer 276watts @100V, 300watts @4 ohms, includes hanging kit. Black
Click below for direct download from our manufacturers.
Description

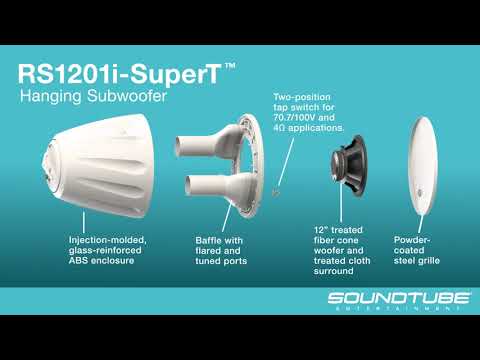

RS1201i-SuperT™ Hanging Subwoofer in Black
The RS1201i is a 12-inch open-ceiling or surface-mount subwoofer tuned for maximum output and performance across the operating bandwidth. By incorporating a 12-inch treated fiber cone woofer and a treated cloth surround in a tuned and ported enclosure, this speaker delivers maximum low frequency response (32 Hz – 200 Hz, ± 10 dB, independently verified) and high SPL (113 dB). The SuperT™ is a special transformer that handles low subwoofer frequencies with very low losses. Mounting hardware includes high-quality UL listed cables and integrated SpeedClamp™ self-locking wire clamp for fast, easy and secure installation. For easy ordering, stocking and installation, the RS1201i includes a two-position tap switch for 70.7-, 100 volt and 4 ohm applications.
Specifications
- Colour: Black
- UPC: 644216201105
- Manufacturer: SoundTube
- Manufacturer's Category: RSi Original Pendant
- Height: 22.8 in / 579.1 mm
- Width/Diameter: 20.8 in / 528.3 mm
- Shipping Weight: 45 lbs / 20.4 kg
- Certifications: CE, RoHS
- Enclosure Properties: ABS, Injection Moulded, Ported
-
Included Accessories:
Euroblock
Hanging Hardware
Safety Cable
Terminal Weather Boot - Optional Accessories: Surface Mount Bracket (AC-HP-SM1290)
- Source Inputs: 4 Pin 5.08mm Euroblock
- Frequency Response (± 10 dB): 32 Hz - 200 Hz
- Frequency Response (± 3 dB): 39 Hz - 200 Hz
- Grille Properties: Powder-Coated, Steel
- Low Frequency Voice Coil: 2 in / 50.8 mm
- Max. Continuous Power RMS: 150 W
- Max. Program Power: 300 W
- Nominal Impedance (Ω Ohms): 4 Ω
- Woofer Driver: 12" Treated Fibre Cone w/ Treated Cloth Surround
- Sensitivity dB @ 1W/1M: 90 dB
- Sensitivity dB @ 2.83V/1M: 92 dB
- Tap Selector: Rotary Switch
Product Details
- RRP
- $ 3174.00
- Brand
- Soundtube
- Product Group
- RS Series
- Product Category
- Speakers - Pendants
